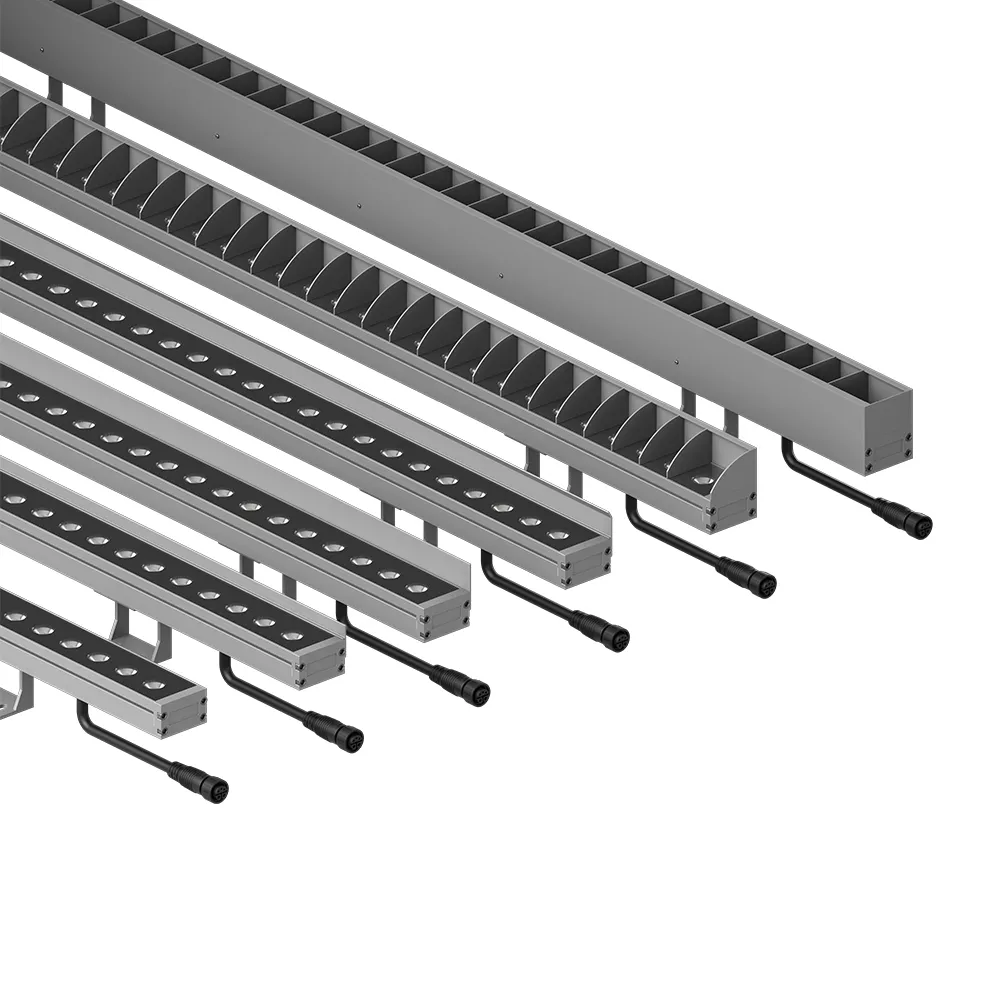

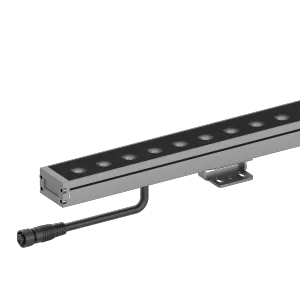

SA5138E LED Wall Washer Light IP66 24W RGBW

SA5138E LED Wall Washer Light IP66 Outdoor 24W RGBW Architectural Facade Lighting

Introduction

Anan SA5138E is a professional-grade LED Wall Washer Light designed for architectural facade illumination. With IP66 weatherproof rating, CRI > 90, and DMX512 / PWM control, it delivers uniform, glare-free wall-washing effects on hotels, shopping malls, office towers, and landmark buildings. Available in single CCT and RGBW versions, OEM / ODM customisation supported.

Spefication

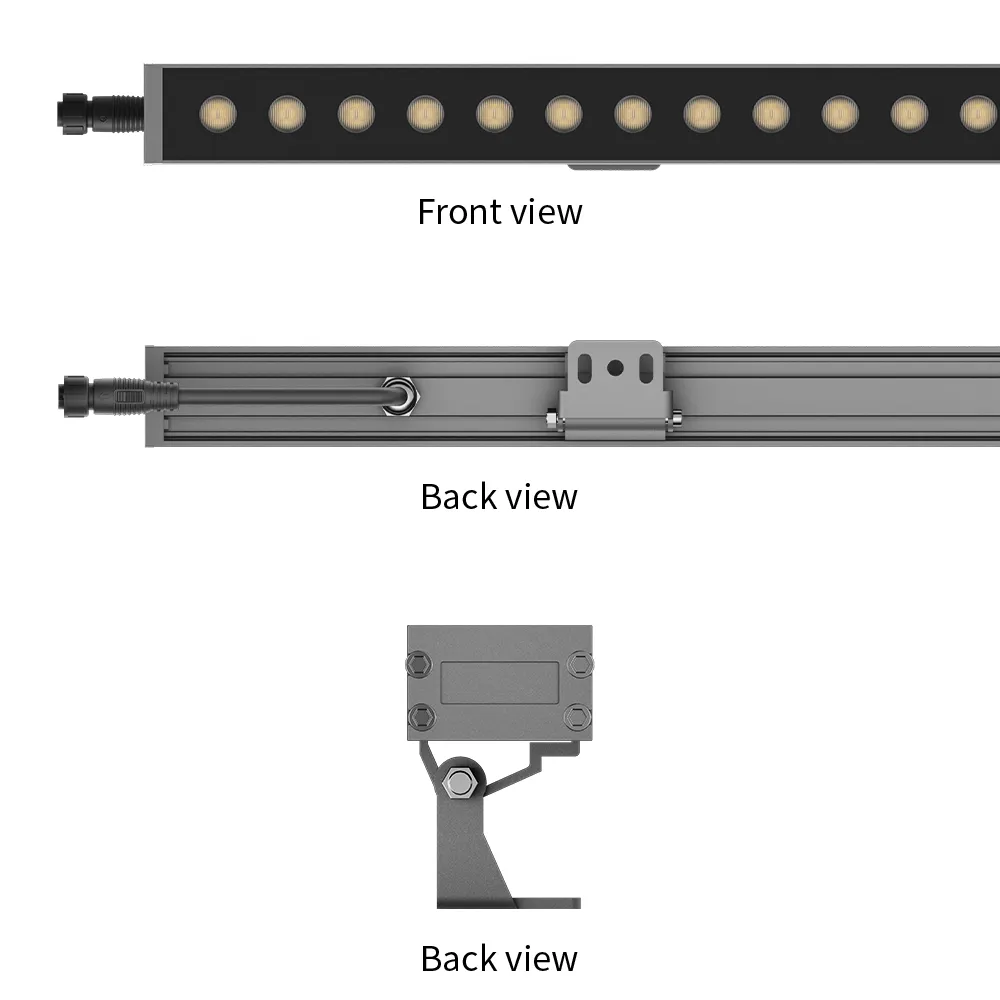

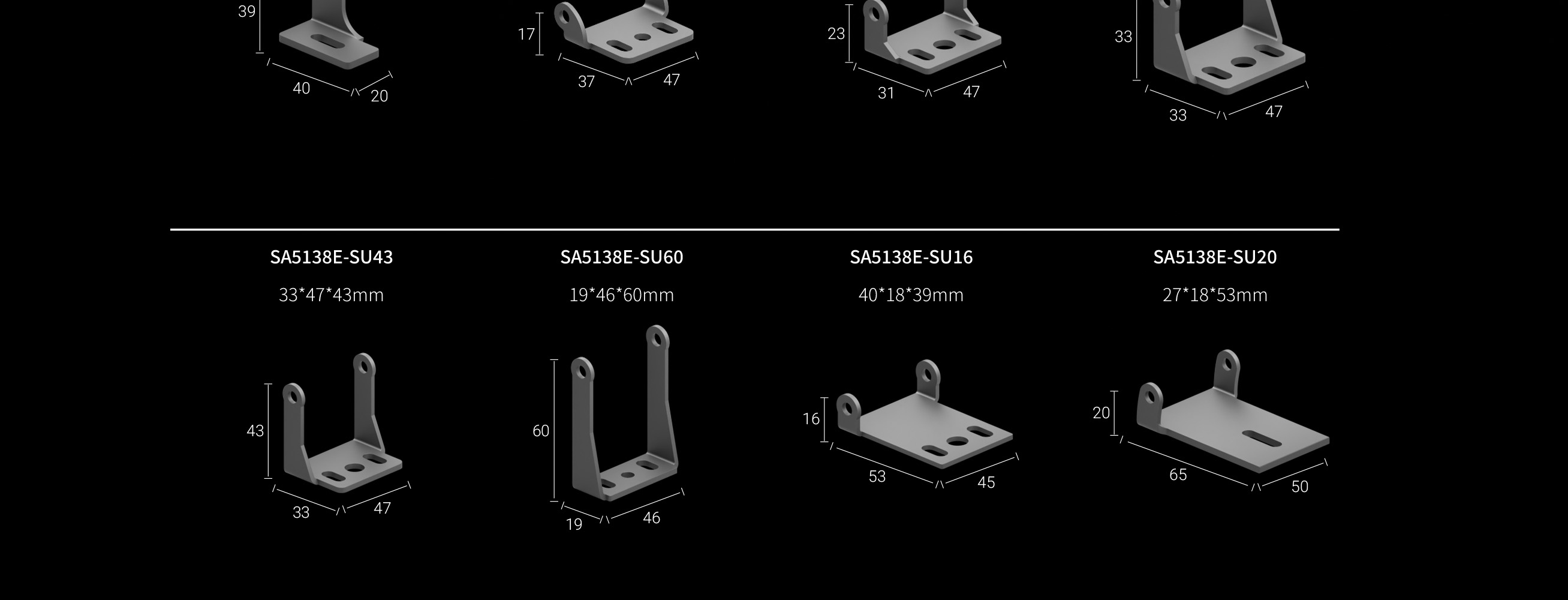

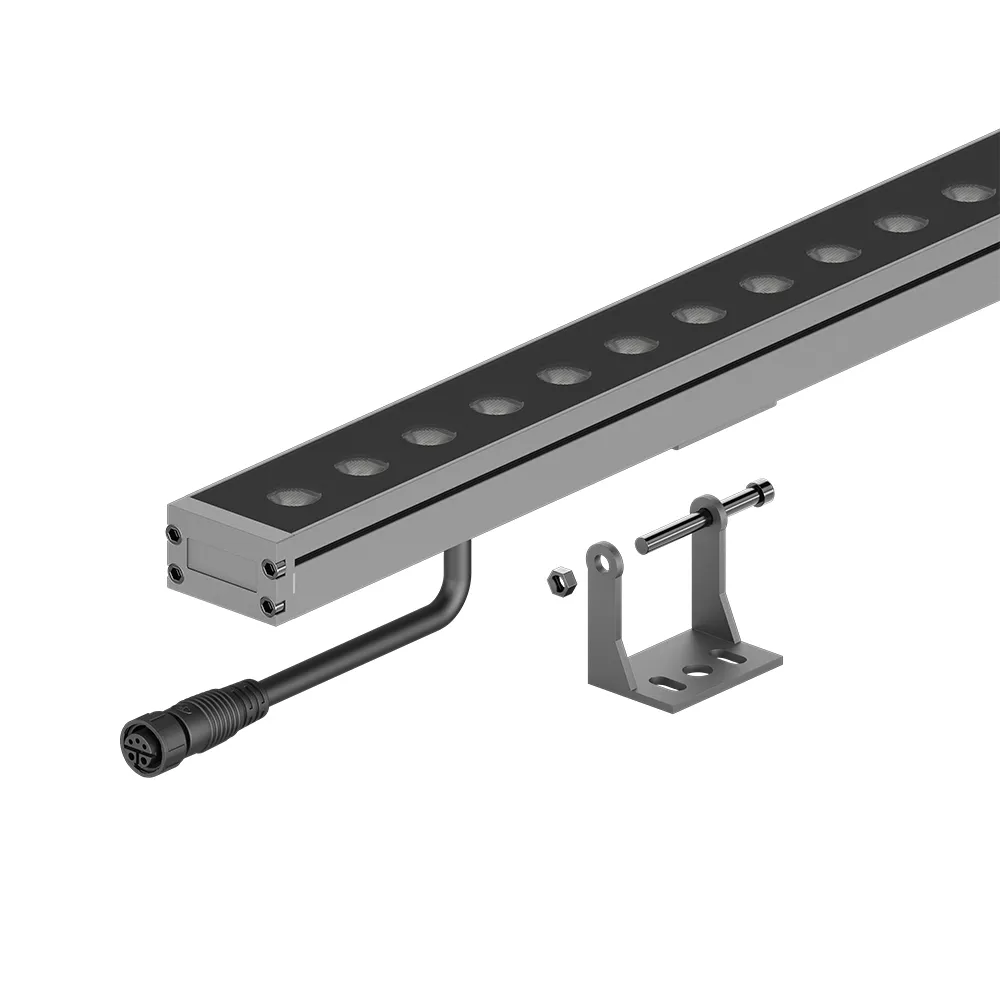

Mounting	Surface / Recessed / Adjustable bracket
Material	Aluminum + tempered glass

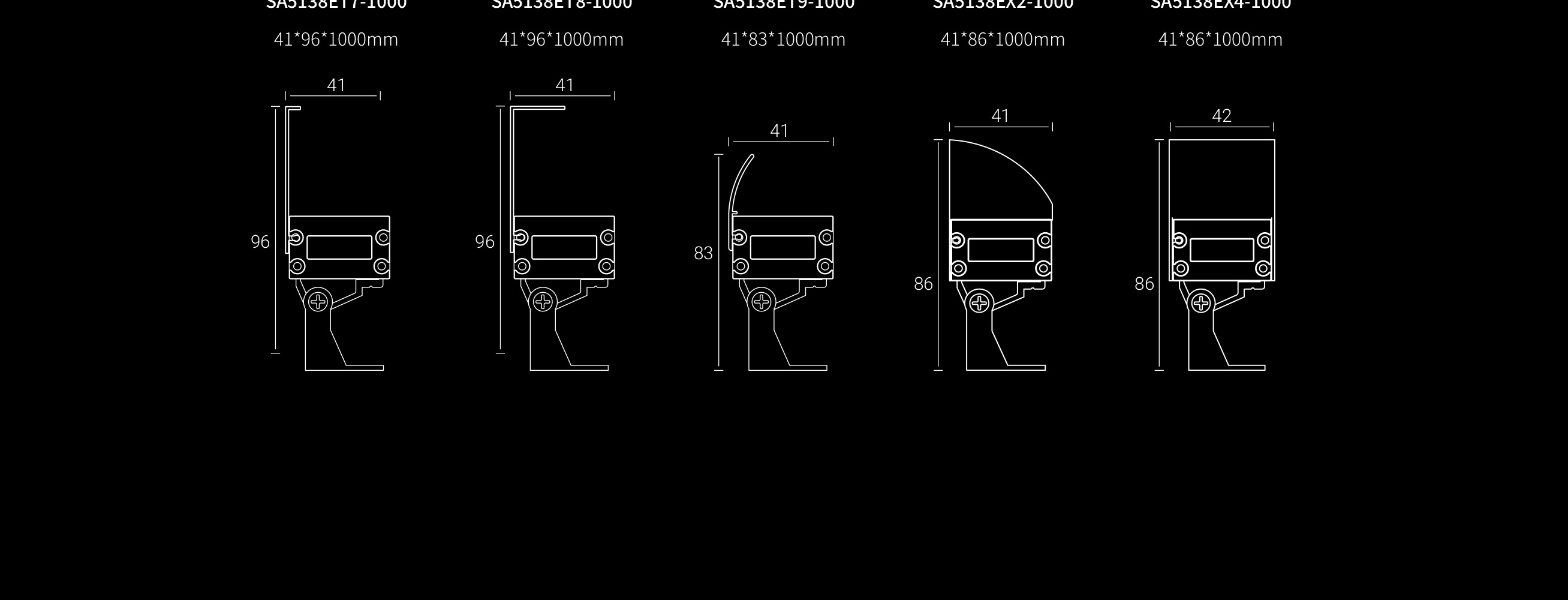

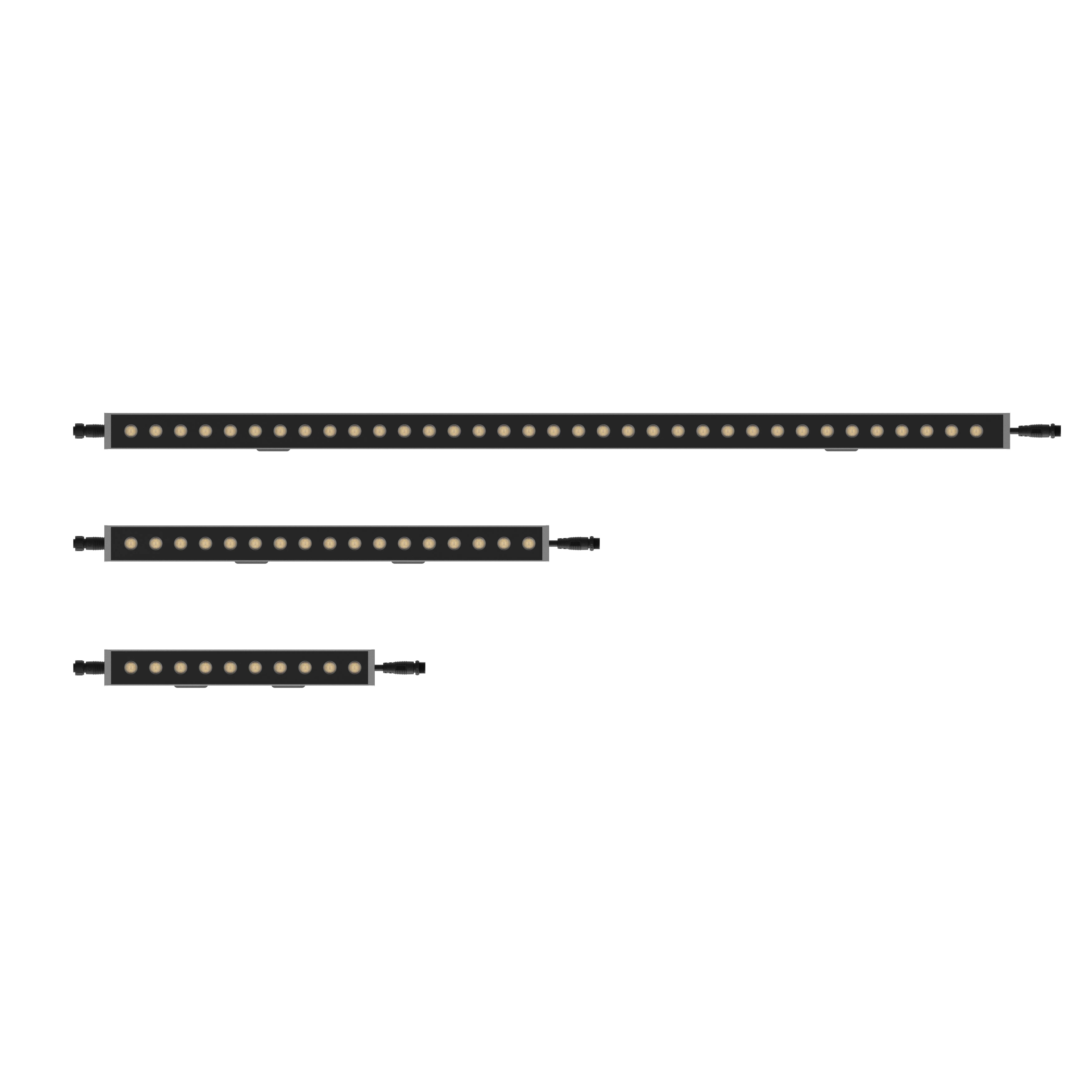

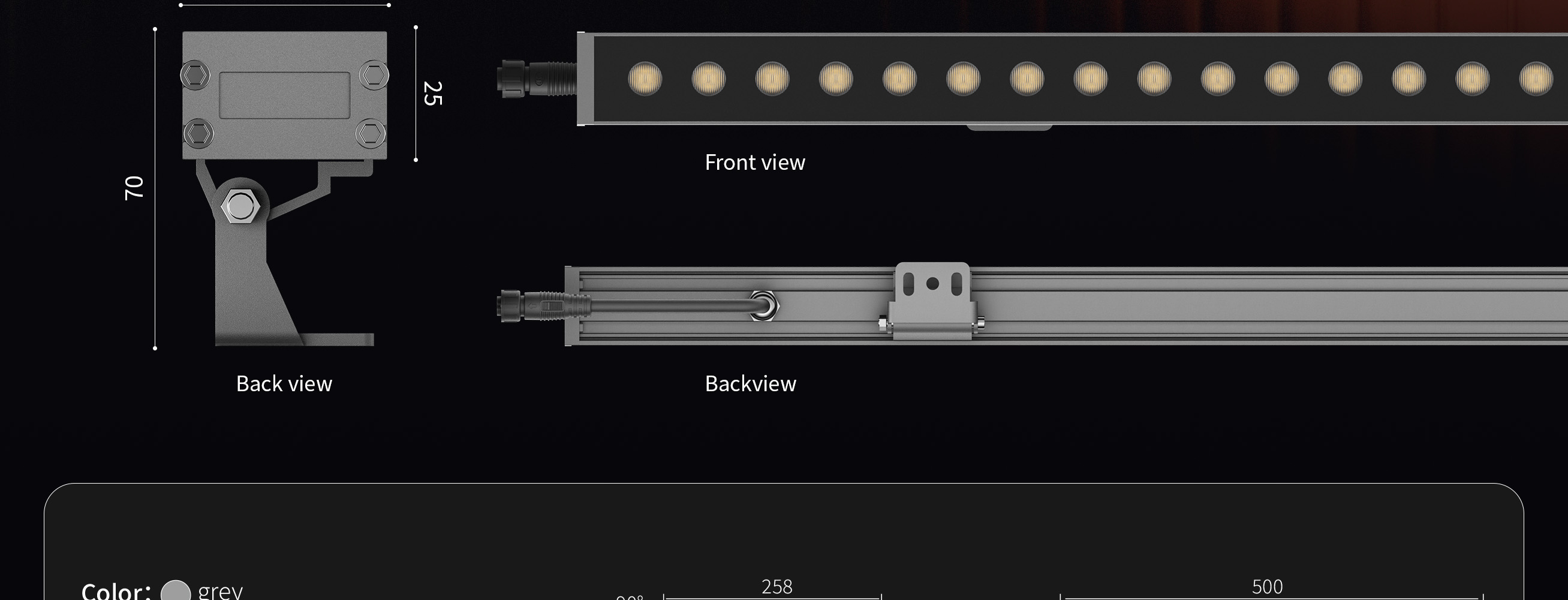

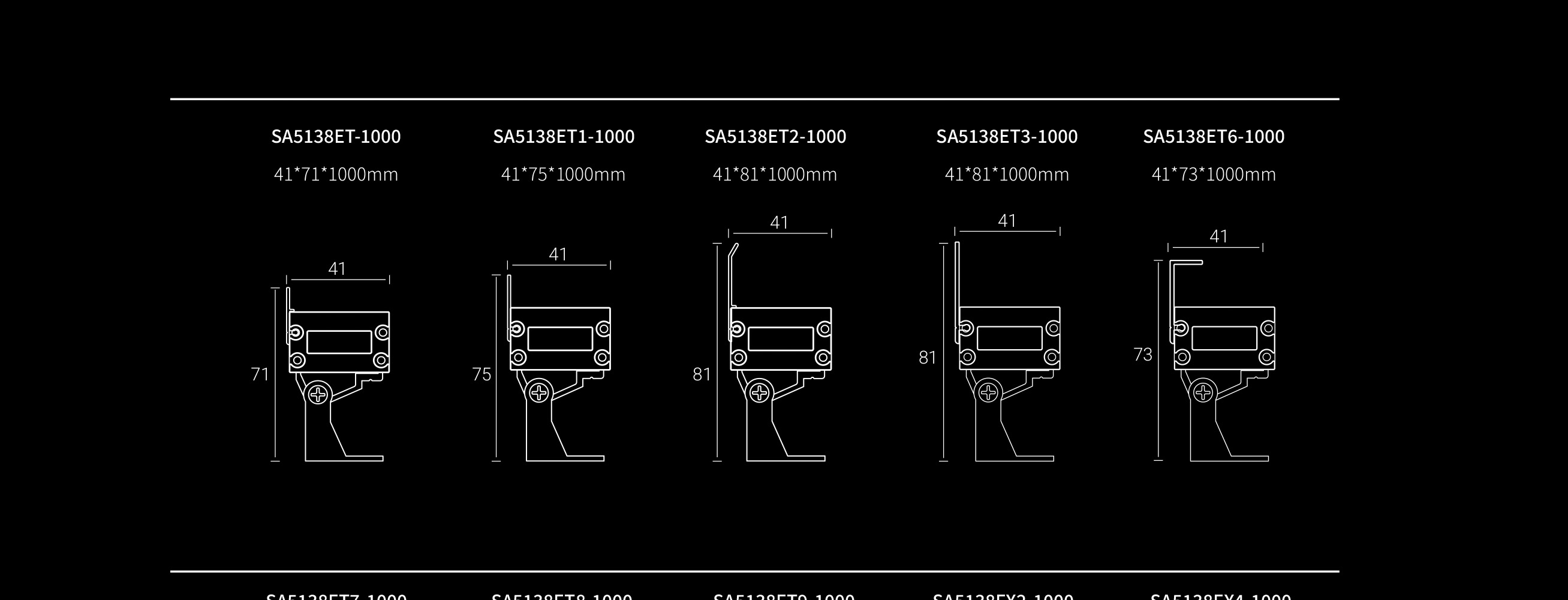

Size	L300 x W 61 x H 40 mm/L500 x W 61 x H 40 mm/L1000 x W 61 x H 40 mm

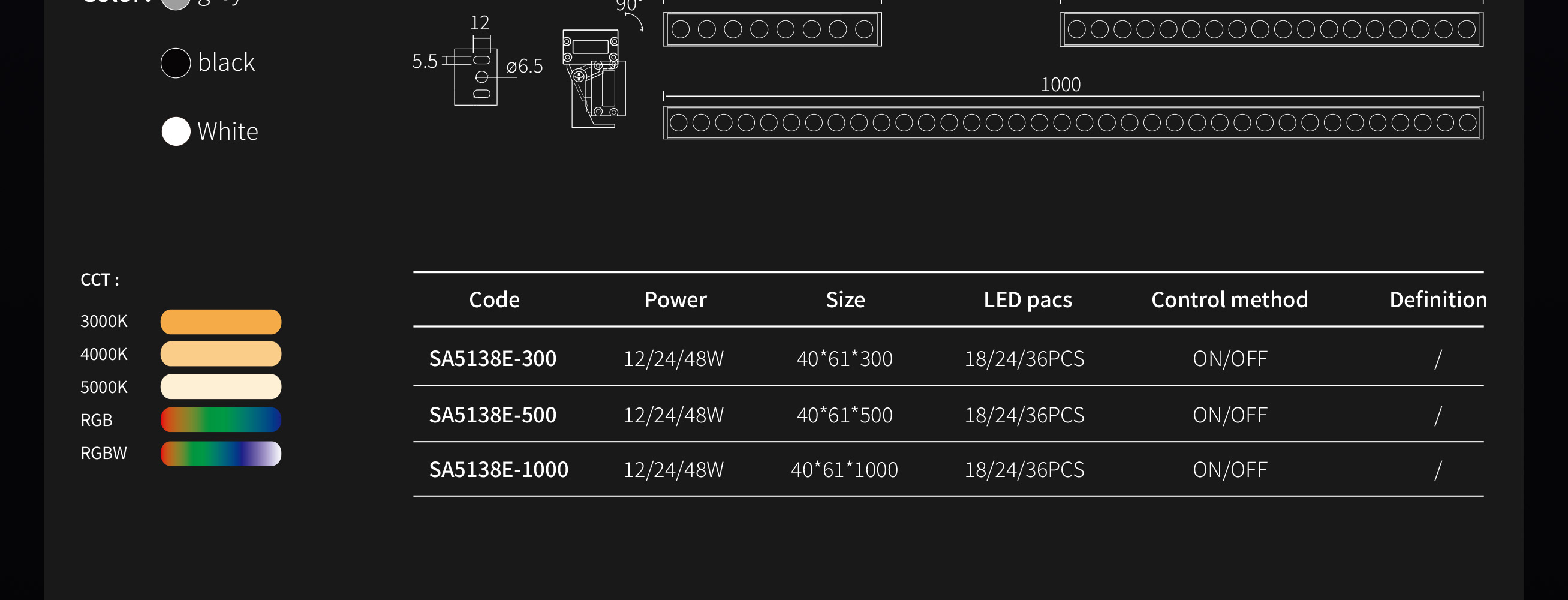

Wattage	10W/300mm/10pcs 12W/300mm/6pc 18W/500mm/18pcs 24W/500mm/12pcs 36W/1000mm/36pcs 48W/1000mm/24pcs
Voltage	24V DC
CCT	3000/4000/5000/RGB/RGBW
Luminous Flux	80-90 LM/W
CRI	Ra>90
SDCM	< 3 (MacAdam 3-step)
Beam Angle	10°/30°/45°/60°/15x45°/20x40°
Control Mode	ON/OFF/DMX512/DALI
IP Rating	IP66
IK Rating	IK08
Lifetime	50,000 hrsL70 (LM-80)
Working Temp	-25°C~+50°C

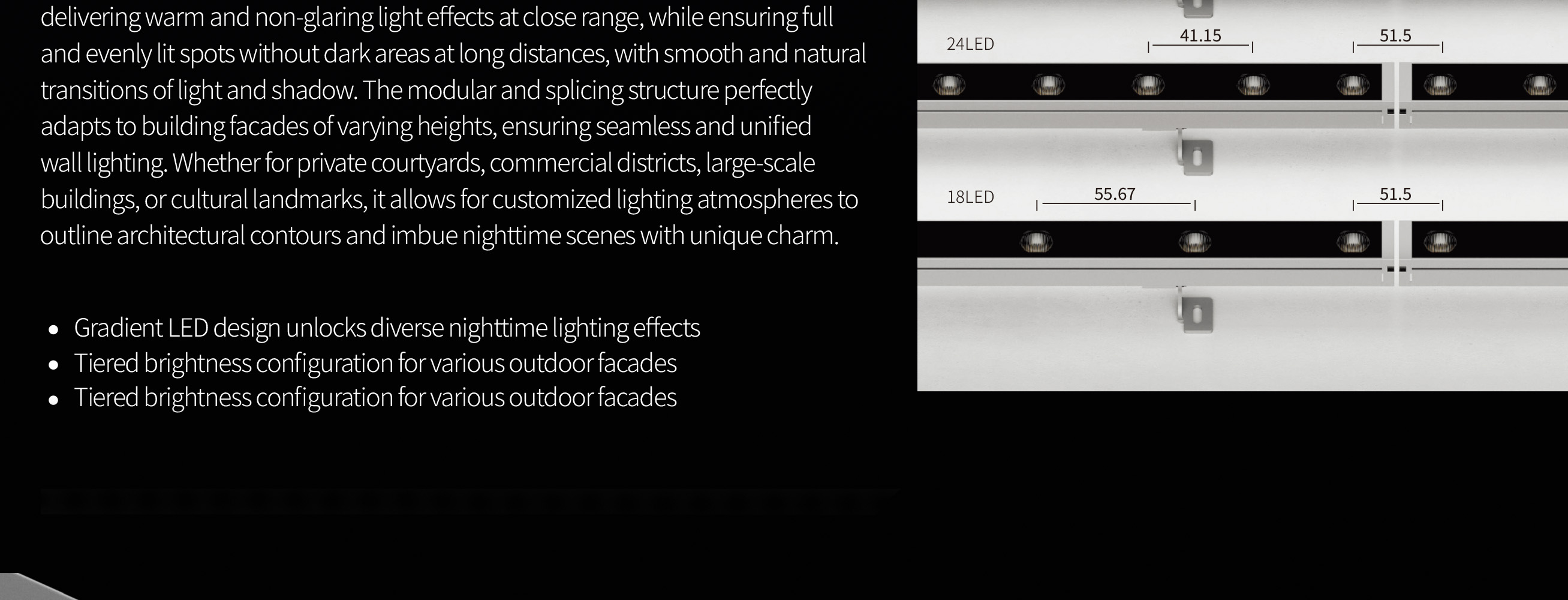

Definition	300mm-1/2 500mm-1/2/4 1000mm-1/4/6/8
LED Chip	CREE / Osram / Epistar
Driver	Meanwell / Inventronics

Anan SA5138E is a professional-grade LED wall washer light designed for architectural facade illumination. With IP66 weatherproof rating, CRI > 90, and DMX512 control, it delivers uniform, glare-free wall-washing effects on hotels, shopping malls, office towers, and landmark buildings. OEM / ODM customisation supported.

1. SA5138E LED Wall Washer – Architectural Facade Lighting

Anan SA5138T LED Wall Washer Light is purpose-built for architectural facade illumination. With an IP66 weatherproof rating, CRI greater than 90, and DMX512 control compatibility, this fixture delivers uniform, glare-free wall-washing effects across hotels, shopping malls, office towers, and landmark buildings. Available in single CCT and RGBW versions, the SA5138E supports OEM and ODM customisation to meet specific project requirements.

2. Key Features

IP66 Protection: UV-resistant aluminum housing and tempered glass diffuser withstand heavy rain, salt spray, and dust ingress. Operating temperature range -25°C to +50°C ensures reliable outdoor performance in diverse climates.

High CRI > 90: Premium LED chips deliver faithful color rendering, ideal for hospitality and high-end commercial projects where brand image and lighting quality are critical.

DMX512 / PWM / SPI Control: Integrates seamlessly with major lighting management systems for dynamic scenes, scheduled events, and energy-saving modes. Compatible with DALI gateways via external converters.

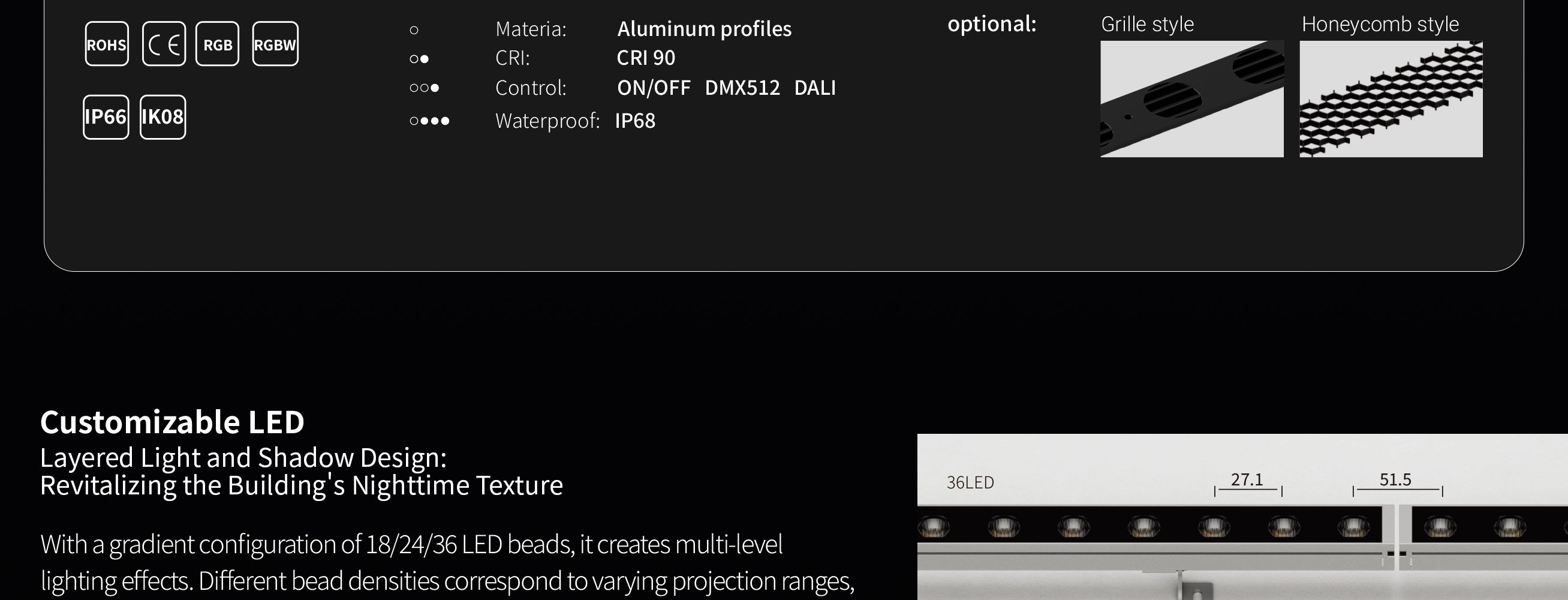

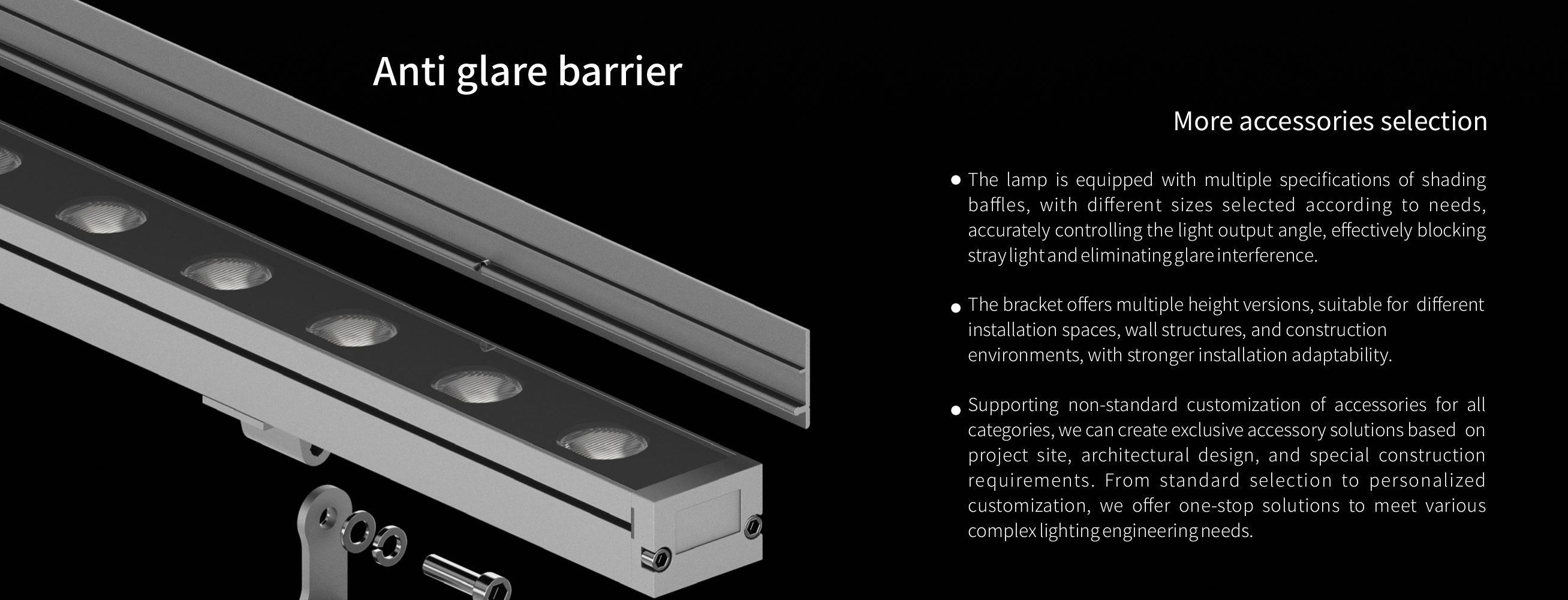

Precision Optical System: Multiple beam angle options (10°, 30°, 45°, 60°, 15×45°, 20×40°) with uniform light distribution. Anti-glare honeycomb louvre optional.

Long Service Life: LM-80 tested LED chips with finned aluminum heatsink design ensure 50,000-hour lifetime at L70, reducing maintenance frequency.

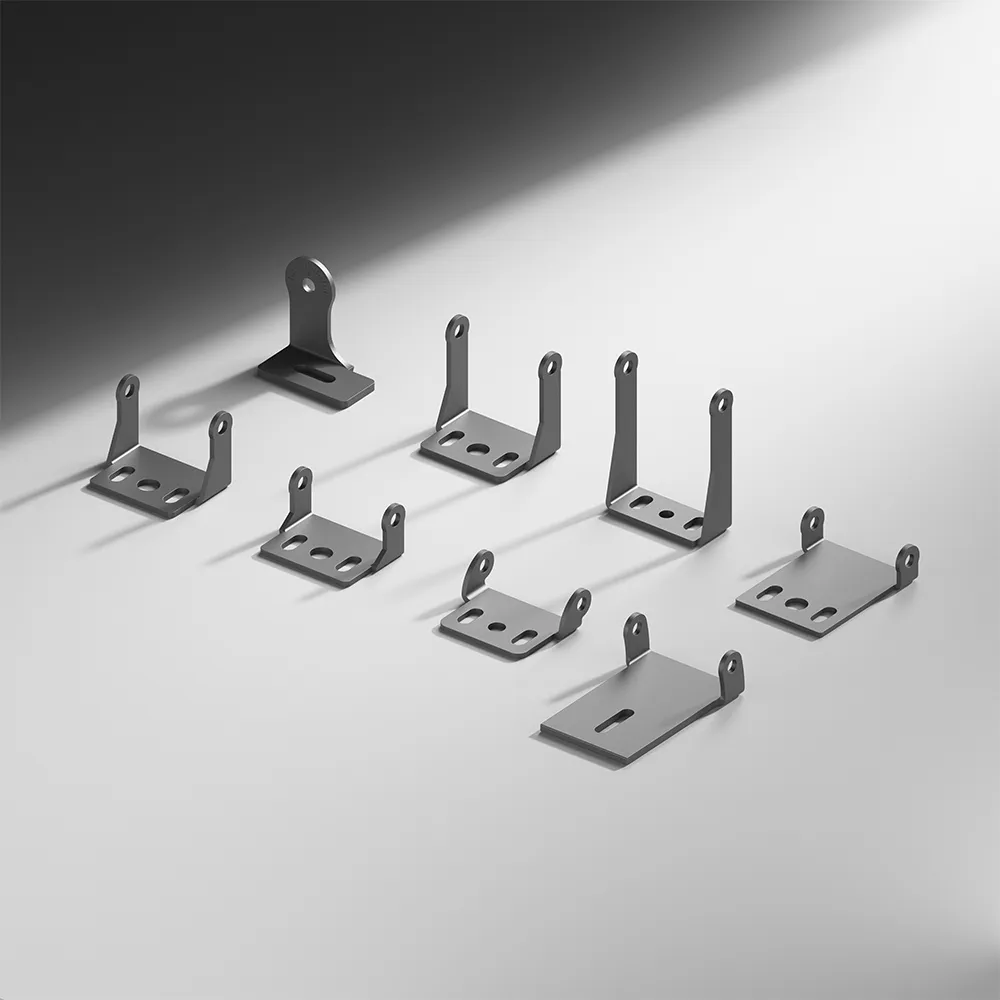

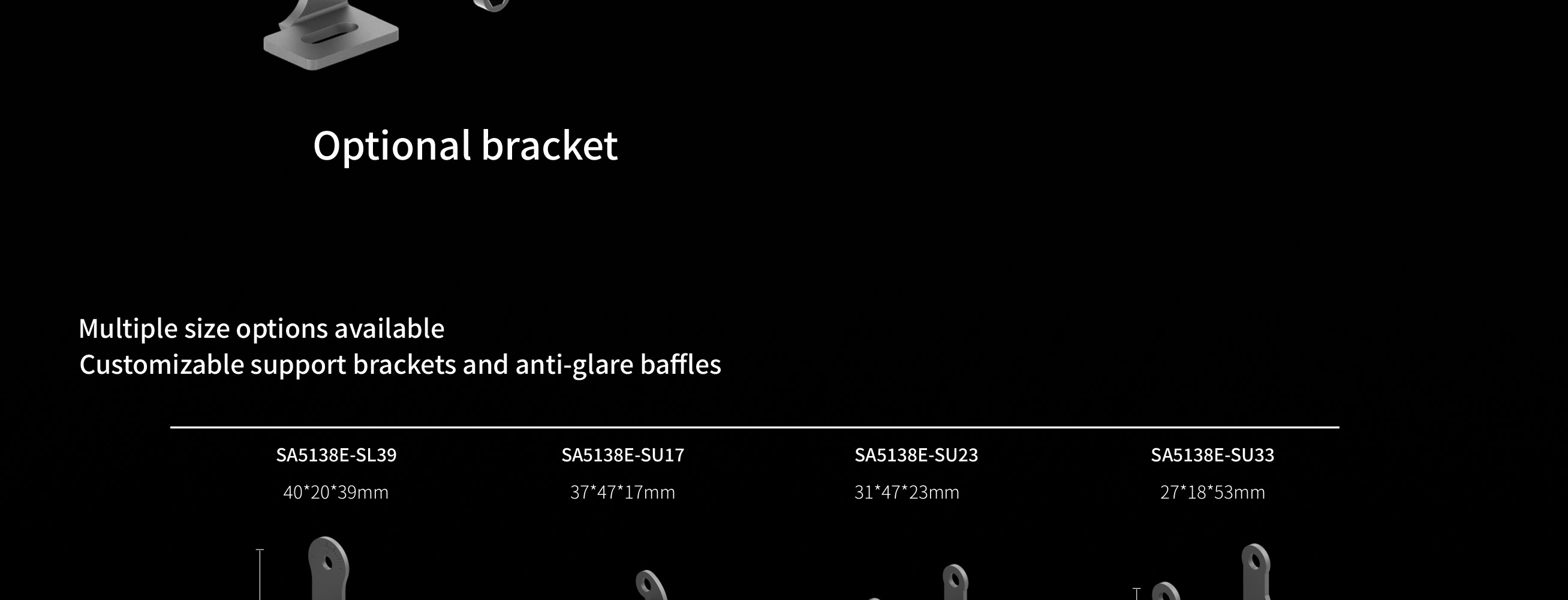

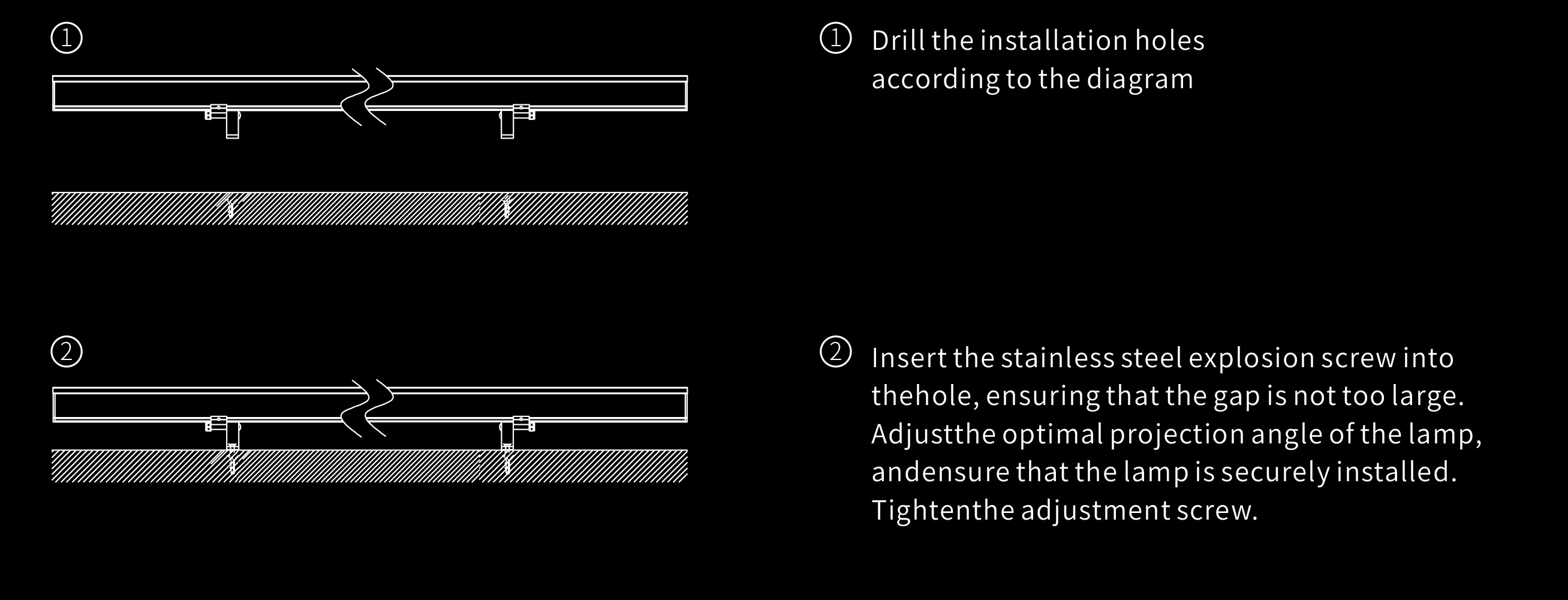

Flexible Installation: Surface mounted, recessed, or with adjustable bracket. Length customizable from 200mm to 2000mm.

3. Applications

Hotel & Resort Facades: The SA5138E creates a soft, uniform glow across hotel exteriors, accentuating architectural lines and textures. DMX512 control enables dynamic evening color scenes; 3000K warm white is recommended for hospitality projects to create a welcoming atmosphere.

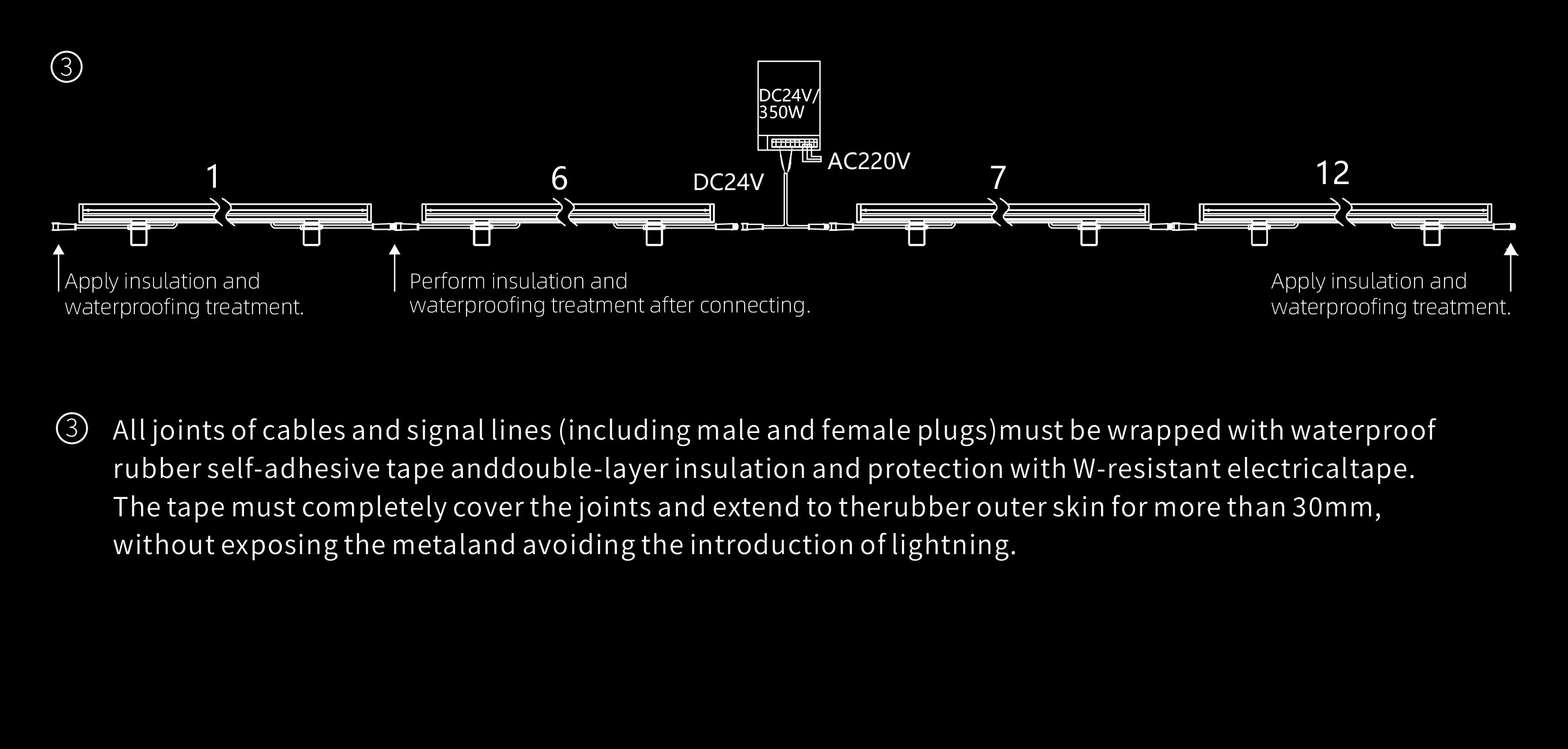

Shopping Malls & Commercial Buildings: With 24W/m high output and IP66 weatherproofing, the SA5138E suits large-scale commercial facade washing. Long-distance cascade (up to 40m with dual-ended power supply) reduces wiring complexity and installation cost.

Office Towers & Landmarks: CRI greater than 90 ensures faithful color rendering on glass curtain walls and metal panels. DMX integration with BMS enables scheduled scenes, energy-saving modes, and event-based lighting programs.

Bridges & Public Infrastructure: The RGBW version supports dynamic color-changing effects for night tourism and urban renewal projects. Operating range -25°C to +50°C suits both tropical and cold-climate installations.

4. Why Choose Anan Lighting

Anan Lighting is a professional LED outdoor lighting manufacturer founded in 2011, headquartered in Zhongshan, Guangdong — China's "lighting capital." Our 6,000 m² facility houses 12 automated production lines, CNC and SMT workshops, and an in-house testing laboratory certified under ISO 9001.

24-Hour Drawing: Project layout and photometric simulation delivered within 24 hours of inquiry.

7-Day Sample: Standard products shipped within 7 days; custom configurations within 14 days.

25–35 Day Bulk Production: Reliable lead times backed by 12 flexible production lines.

OEM / ODM Services: Custom length, CCT, beam angle, housing color, and branded packaging.

3-Year Standard Warranty: 5-year optional warranty available for qualified projects.

Certifications: CCC, CQC, CE, RoHS, CB. Products exported to 30+ countries.

Contact our project team at ananlightig@gmail.com or via WhatsApp to request a quotation or IES file.
